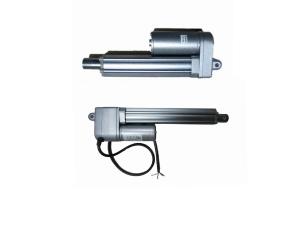

Specification of Linear Actuator
| Brand | OEM |
| Type | Linear actuator |
| Model | Mini Linear Actuator |
| Input Voltage | 12/24/36/48VDC |
| Max Charge/Push Force | 1200N |
| Speed | 5-60mm/s |
| Stroke | 20-305(Optional) |
| Limited Switch | Build-in(non-adjustable) |
| Operation Temperature | -26~65°C |
| Protective Class | IP65 |
| Duty Cycle | 25% |
| Min Installation Size | S+105mm(standard) S+120(S>300mm) |
| Life Span | >20,000 times |
| Material | Aluminium alloy |
| Cover Color | Black/Slivery White |
| Optional Fittings | Potentiometer |
| Screw type | ACME |
| Application | Industry |
| MOQ | 100 PCS |
Information About Linear Actuator Basic Installation Dimension
| Actuator Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 |
| Basic Installation Stroke(mm) | 155 | 205 | 255 | 305 | 355 | 405 |
| With potentiometer installation | 185 | 235 | 285 | 335 | 385 | 435 |
Potentiometer range
| Code | Max stroke | Resistance range(KΩ) |
| A,D,G,J | 200mm | 100mm stroke 4.75KΩ | 200mm stroke9.5KΩ |
| B,E,H,K | 300mm | 150mm stroke 4.5KΩ | 100mm stroke 9.0KΩ |
| C,F,I,L | 450mm | 200mm stroke 4.0KΩ | 100mm stroke 9.0KΩ |
| Note: potentiometer 10KΩ (the actual resistence depends on specific stroke) |
Drawing of linear actuator
L:linear actuator hole to hole distance, in other words,it is min installation dimension (body length).
S:linear actuator traveling distance, in other words, the linear actuator can lift how many distance (total length).
Our company can design the linear actuator stroke for you, if this model cannot meet your needs,
I will recomment other linear actuator to you.
Controller system for linear actuators
More linear actuators for you to choose
| Model | Picture | Application |
| Mini linear actuator |  | Sweeper car |
| | Lawn mover |
| Voltage:12V/24V/36V/48V | Snow plough |
| Max load 1200N | Dog treadmill |
| Max speed:100mm/s | LED Car |
| Duty cycle:25% | Arrow board trail |
| Limit switch:Inner | Forklift |
| IP grade:IP65 | braking system |
| Noise level:60db-65db | Others… |
| Micro linear actuator |  | |
| | |
| Voltage:12V/24V/36V/48V | Application: |
| Max load 2000N | Sweeper car, |
| Max speed:15mm/s | Lawn mover, |
| Duty cycle:25% | Forklift, |
| Limit switch:Inner | Dog treadmill, |
| IP grade:IP66 | Furniture, |
| Noise level:45db | Others... |
| Heavy duty linear actuator |  | Sweeper car |
| | Lawn mover |
| Voltage:12V/24V/36V/48V | Snow plough |
| Max load: 7000N | AGV |
| Max speed: 35mm/s | LED Car |
| Duty cycle:25% | Robotic vehicles |
| Limit switch:Inner | Forklift |
| IP grade: IP65 | braking system |
| Retracted length: S+250mm | Harvesting machine |
| Feedback: hall sensor or pot | Sprayer |
| Inner tube: stainless steel | Scissor lifter |
| | Others… |
We need below info of linear actuator to complete the quotation.
1- voltage (v dc)
2- stroke (mm)
3- load (kg or n)
4- other special requirement
5- simple description of application
6- quantity
7- delivery address if freight prepaid
